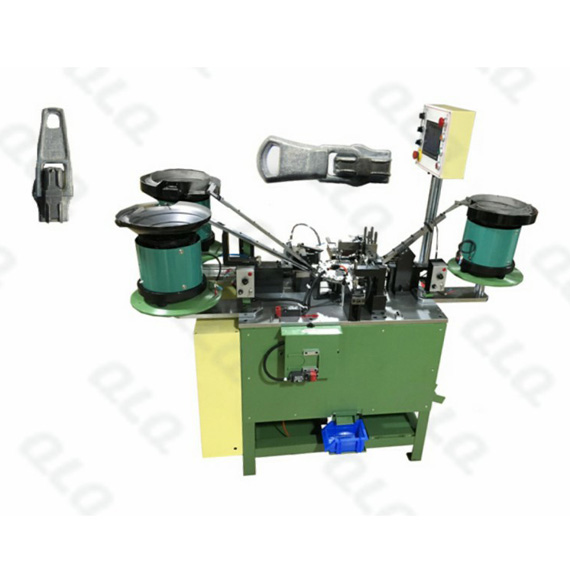

QLQ-028 Automatic & Semi-automatic Auto Spring-lock Slider Assembly Machine (3 components)

Summary : Automatic & Semi-automatic Auto Spring-lock Slider Assembly Machine (3 components) is the newly design slider making machine for standard slider. Average output is 3500 pcs per hour.

Product Name:  Automatic & Semi-automatic Auto Spring-lock Slider Assembly Machine (3 components)

Model number : QLQ-028

Summary :  Automatic & Semi-automatic Auto Spring-lock Slider Assembly Machine (3 components) is the newly design slider making machine for standard slider. Average output is 3500 pcs per hour.

PRODUCT DESCRIPTION

N31 Auto-lock Slider and Fancy Puller Semi-auto Assembly Machine

DIMENSION: L 150*W110* H150 CM

MOTOR POWER: 1HP

PACKAGING MEAS.: L 170W 115*H 165 CM

WEIGHT: N.W.:430kgs, G.W.:550kgs

AIR PRESSURE: 5 kgs/cm2

WORKING AREA: 4.5 sq.m.

OPERATOR: 1 operator/machine

Remarks:

1) Average output: 3500 pcs/hour. (auto mode)

2) N-31 auto-lock slider accessories are fed from the part-feeder via the guide then auto-assembled. Production efficiency can be greatly improved.

3) Installation sensor can pick defect goods out and machine can stop automatically.

4) Can switch auto mode for normal puller and semi-auto mode for fancy puller to assembly. Machine speed is adjustable.

5) This N31 Auto-lock Slider Assembly Machine works stably.

6) Technicians are available to offer after-sales service overseas.
