Plastic Open-end Finished Zipper Machine

1. Gapping

1

Step 1 : Gapping

QLQ Guidance
You can find the different detailes between long model and short model from our inside solutation page.
Machine Needed
Automatic Plastic Zipper Gapping Machine(Standard Configuration)
Material Used
Plastic Long Chain Zipper

2. Procedure Film Sealing

2

Step 2 : Film Sealing

3. Hole Punching

3

Step 3 : Hole Punching

QLQ Guidance
We have standard hole punching machine and ultrasonic hole punching machine for your choosing according to your zipper quality requirement and weather situation.

Machine Needed


Material Used

Automatic Plastic Zipper Hole Punching Machine (Standard Configuration)
QLQ-HPMZ Hole Punching Mould for Zipper

4. Slider Mounting

4

Step 4 : Slider Mounting

QLQ Guidance
If you want this slider mounting machine can be suitable for different fancy puller, please send all samples to us, we will try to make the vibrator suitalbe for these model.
Machine Needed
1) Automatic Plastic Zipper Single Side Slider Mounting Machine (Standard Configuration)
Material Used
Slider

5. Pin Box /Pin Pin Fixing

NOTE : We have we have 4 types of Plastic Zipper Open End Injection Machines showing below. You can choose any one for your company.
5-1

Step 5-1 : Pin Box /Pin Pin with top stop Injection

QLQ Guidance
If the order for zipper with pin pin is not so much, there is no need to buy automatic pin pin fixing machine. You can choose to buy semi-auto pin pin fixing machine for saving your invest cost.
Machine Needed
1) Automatic Plastic Zipper Open-end Injection Machine (only for zipper without slider)(without mould)(Standard Configuration)
Material Needed
POM material
5-2

Step 5-2 : Pin Box /Pin Pin with top stop Injection

QLQ Guidance
If the order for zipper with pin pin is not so much, there is no need to buy automatic pin pin fixing machine. You can choose to buy semi-auto pin pin fixing machine for saving your invest cost.
Machine Needed
Material Needed
2) Automatic Plastic Zipper Open-end Injection Machine (for zipper with/without slider)(Standard Configuration)
POM material
5-3

Step 5-3 : Pin Box /Pin Pin with top stop Injection

QLQ Guidance
If the order for zipper with pin pin is not so much, there is no need to buy automatic pin pin fixing machine. You can choose to buy semi-auto pin pin fixing machine for saving your invest cost.
Machine Needed
Material Needed
3)Semi-automatic Plastic Zipper Closed-end & Open-end Injection Machine(without mould)(for zipper with/without slider)(Standard Configuration)
POM material
5-4

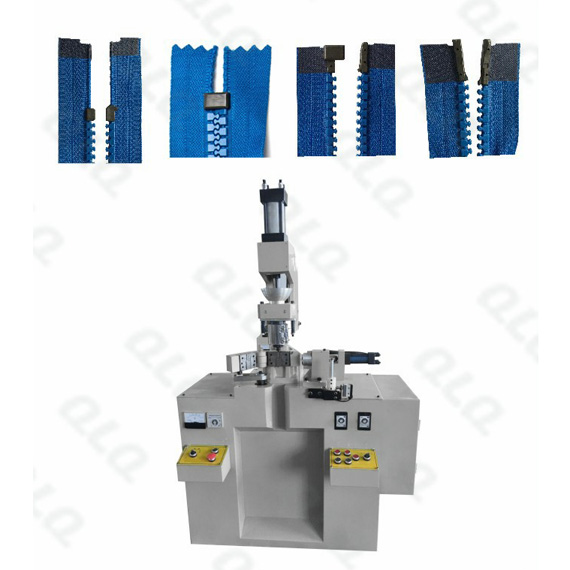

Step 5-4 : Pin Box /Pin Pin with top stop Injection

QLQ Guidance
If the order for zipper with pin pin is not so much, there is no need to buy automatic pin pin fixing machine. You can choose to buy semi-auto pin pin fixing machine for saving your invest cost.
Machine Needed
Material Needed
4) Semi-automatic Plastic Zipper Injection Machine (open-door model, only inject top stop/bottom sotp/pin box/pin pin)(Standard Configuration)
POM material

Plastic Zipper Open-end Injection Waste Material Picking & Zipper Combining Machine QLQ-DPCM #Zipper_Machines

7. Cutting

NOTE : We have we have 6 types of Plastic Zipper Open End Cuttings Machines showing below. You can choose any one for your cutting choices.
7

Step 7 : Cutting
